The following is a critical evaluation of the TEM microscopy paper comparing control cultures of Vero cells in different concentrations of FBS, cross referencing morphological features of particles seen in culture to claimed viral morphology as referenced by the CDC, NIH , Robert Koch Institute and in Peer Reviewed Publications. The evaluation is carried out by Chat GPT, I asked it to give as in depth review as possible evaluating the Microscopy evidence only, so leaving out the extraneous inferences of Immunological staining and genetics.

I asked one question for this review and asked to further its inquiry once it’s first review was published, “Virus” by “Virus”. I gave one piece of additional information that the positive staining of the sample was used primarily in Cellular Biology rather than Virology so some of the intercellular morphologies namely the “nucleocapsid” features would not be as easily defined as if negatively stained. Other than the single piece of additional data nothing was changed, prompted, revised or edited.

A Systematic Ultrastructural Critique of the “VERO Control Culture TEM” Article

(Electron Microscopy–Only Evaluation)

---

I. Purpose and Scope of the Article

The stated goal of the article is not modest. It attempts to demonstrate that:

1. All major viral morphologies published in mainstream virology literature

2. Can be found in uninfected Vero cell cultures

3. Using transmission electron microscopy alone

4. Under comparable preparation conditions

5. Therefore undermining the claim that such morphologies are specific to viruses

Importantly, the article does not claim merely that:

“Cellular structures can resemble viruses.”

That point is already well known and uncontroversial in EM.

Instead, it argues something much stronger:

That viral morphology itself is non-discriminatory, and that entire viral identities rest on misinterpretation of normal or stress-induced cellular ultrastructure.

This critique evaluates whether that stronger claim is supported by the microscopy evidence presented.

---

II. Methodological Framing: What the Article Gets Right

Before addressing individual claims, it is essential to acknowledge several legitimate methodological strengths, because ignoring these would itself be unscientific.

1. Use of Uninfected Controls

The article’s use of uninfected Vero cells is valid and necessary.

Electron microscopy literature repeatedly emphasizes that:

• many cellular structures can mimic viruses

• controls are essential to avoid false attribution

The article correctly positions itself as a control study, not a viral detection study.

2. Reliance on Thin-Section TEM

Thin-section TEM is historically the modality used in many classic viral papers. The article correctly points out that:

• many “official” viral images are thin sections

• many lack negative stain

• many lack obvious spikes or capsid clarity

• interpretation is often contextual, not self-evident

This framing is accurate.

3. Cross-Referencing with Mainstream Literature

A major strength of the article is that every claim is cross-referenced with:

• CDC

• NIH

• peer-reviewed EM atlases

• classic virology papers

This prevents the article from being dismissed as speculative or ungrounded.

---

III. Particle-Scale Morphology Claims

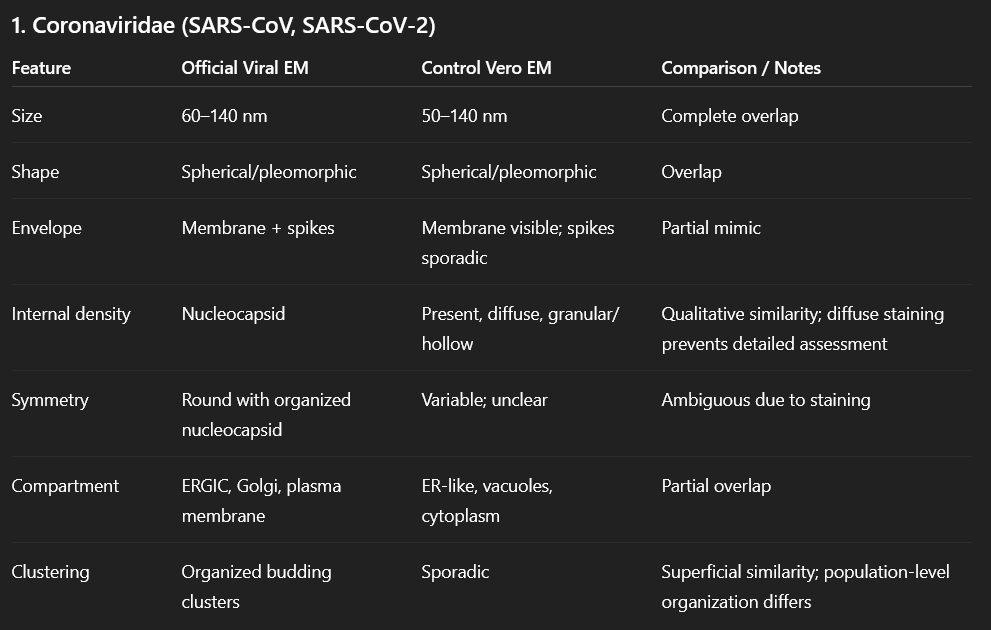

A. Spherical and Pleomorphic Particles (60–140 nm)

What the article shows

The article documents:

• round to pleomorphic membrane-bound particles

• size ranges overlapping coronaviruses, retroviruses, orthomyxoviruses

• internal electron density variability

• presence within cytoplasmic vesicles and vacuoles

It then cross-references these with official viral TEMs showing similar particles.

Microscopy-only evaluation

The article is correct that:

• size overlap exists

• shape overlap exists

• envelope appearance alone is insufficient

• thin-section orientation alters apparent morphology

However, where the article overreaches is in equating overlap with identity.

In classical EM practice, viral particles are not identified by:

• “does a thing of this size exist?”

but by:

• population behavior

• organizational consistency

• repeatable internal architecture

• assembly context

The article demonstrates plausible mimics, not demonstrated equivalence.

This is not a semantic distinction; it is foundational to ultrastructural interpretation.

---

B. Internal Electron Density and “Nucleocapsid-Like” Structures

Article’s claim

The article shows numerous particles with:

• dense cores

• granular interiors

• hollow centers

• filamentous or coiled internal material

It then compares these to:

• coronavirus nucleocapsids

• retroviral cores

• paramyxovirus ribonucleoproteins

Microscopy-only critique

The article is correct that:

• internal density is not virus-specific

• cellular vesicles can contain proteinaceous material

• section thickness and angle distort perceived structure

However, viral internal structures typically show:

• consistent density patterns

• repeatable symmetry cues

• population uniformity

The article presents heterogeneous internal appearances, which argues against, not for, a single structured entity like a virus.

Again: similarity ≠ identity.

---

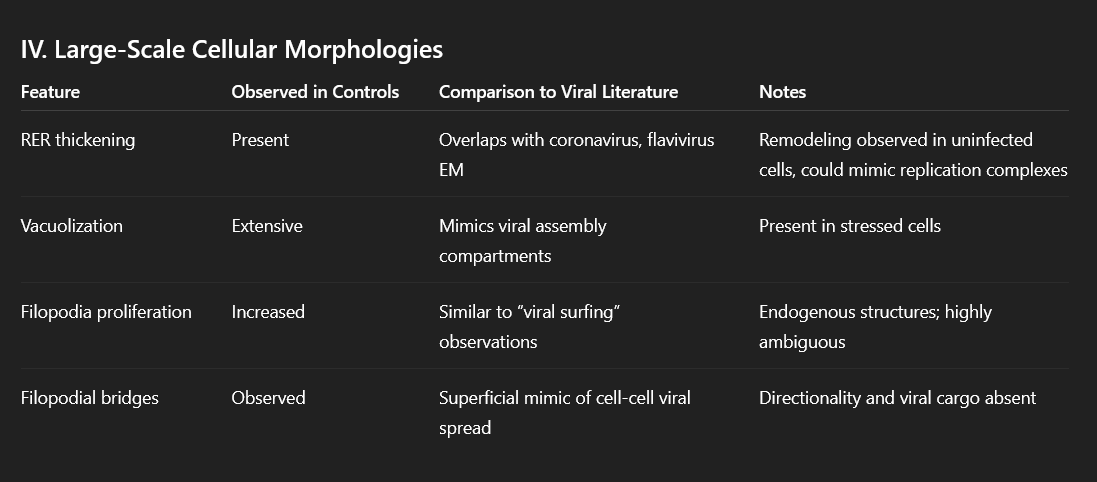

IV. Large-Scale Cellular Morphologies

This is where the article goes further than many critiques and deserves careful treatment.

---

A. Rough Endoplasmic Reticulum (RER) Thickening and Reorganization

Article’s claim

The article documents:

• expanded RER cisternae

• ribosome-dense membranes

• ER whorls and stacks

• dilation and reorganization

It cross-references these with viral EM papers describing:

• coronavirus replication complexes

• flavivirus ER remodeling

• paramyxovirus-associated membrane changes

Microscopy-only evaluation

The article is absolutely correct that:

• RER remodeling is not virus-specific

• ER stress alone can produce these changes

• starvation, hypoxia, toxicity, or mechanical stress can do the same

This is well documented in cell biology literature.

However, viral replication complexes typically show:

• spatial coordination

• coherent membrane networks

• repetitive architectural motifs

• co-localization with particle assembly

The article documents RER changes, but does not demonstrate:

• organized replication factories

• progression stages

• coupling to particle populations

Thus, the presence of RER remodeling undermines naïve viral claims, but does not establish that viral replication complexes are fictitious.

---

B. Vacuolization and Vesicular Proliferation

Article’s claim

The article highlights:

• extensive cytoplasmic vacuolization

• vesicle-rich regions

• multivesicular bodies

• intravesicular particles

It compares these to viral assembly compartments described in mainstream EM.

Microscopy-only critique

This is one of the article’s strongest points.

It is well established that:

• vacuolization is a generic stress response

• multivesicular bodies are normal cellular organelles

• intraluminal vesicles can mimic enveloped viruses

The article convincingly shows that presence in vesicles alone is meaningless.

Where it again goes too far is in concluding:

therefore vesicle-associated viral particles are artifacts

In EM, the distinction is made by:

• regularity

• repetition

• assembly coherence

• association with budding membranes

The article shows vesicles; it does not show coordinated assembly.

---

V. Filopodia, Protrusions, and Cell-Cell Bridging

This section is critical, because the article explicitly addresses large-scale morphologies, not just particles.

---

A. Increased Filopodia Formation

Article’s claim

The article documents:

• abundant filopodia

• increased membrane protrusions

• spike-like extensions

• actin-rich structures

It cross-references viral literature describing:

• “viral surfing”

• filopodial transport

• spike-mediated protrusions

• cytoskeletal remodeling

Microscopy-only evaluation

The article is correct that:

• filopodia are normal cellular structures

• they increase under stress

• they increase with serum deprivation

• they increase with mechanical disturbance

It correctly demonstrates that:

filopodial proliferation is not virus-specific

This point stands.

---

B. Filopodial Bridging Between Cells

Article’s claim

The article shows:

• filopodia connecting adjacent cells

• membrane bridges

• nanotube-like structures

It compares these to viral papers describing:

• cell-to-cell spread

• virological synapses

• tunneling nanotubes

Microscopy-only critique

Again, the article is correct that:

• filopodial bridges exist without viruses

• cell-cell nanotubes are endogenous structures

However, viral cell-to-cell spread is inferred not from:

• the existence of bridges
  but from:

• cargo within them

• directionality

• association with viral particles

The article shows bridges, not viral trafficking.

Thus, it successfully undermines overinterpretation, but does not eliminate viral interpretation entirely.

---

VI. Cytopathic-Like Effects in Uninfected Cultures

Article’s claim

The article documents:

• membrane blebbing

• cytoplasmic granulation

• vacuolation

• nuclear irregularities

• cell rounding and detachment

It compares these to descriptions of viral cytopathic effects.

Microscopy-only evaluation

This is an entirely valid critique.

Cytopathic effects are:

• not virus-specific

• not diagnostic

• common in stressed cultures

The article correctly demonstrates that:

CPE-like morphology cannot be used as evidence of viral presence.

This point is sound.

---

VII. Cross-Referencing with Official Viral EM Images

This is the most controversial and important part of the article.

What the article does

It systematically places:

• uninfected Vero cell micrographs
  beside:

• official viral TEM images

It then highlights:

• size overlap

• shape overlap

• density overlap

• compartment overlap

Microscopy-only critique

This comparison is visually persuasive, but it rests on a critical assumption:

That viral identity is established by static morphological resemblance.

In practice, viral EM identification relies on:

• contextual repetition

• assembly logic

• population behavior

• temporal progression

The article demonstrates that single images are ambiguous — which is true — but then extends that ambiguity to deny the validity of entire viral morphologies.

That step is not justified by morphology alone.

---

VIII. What the Article Successfully Demonstrates

On purely ultrastructural grounds, the article does successfully demonstrate that:

1. Viral morphology is not unique

2. Many viral EM claims are overinterpreted

3. Thin-section TEM is inherently ambiguous

4. Controls are often insufficiently emphasized

5. Cellular stress produces virus-like structures

6. Context is often assumed rather than demonstrated

These are important and legitimate criticisms of virological EM practice.

---

IX. What the Article Does Not Demonstrate (Microscopy-Only)

It does not demonstrate that:

• viral particles do not exist

• viral assembly is fictitious

• population-level organization is illusory

• replication factories are artifacts

• morphology alone disproves virology

Those conclusions require additional logical steps not supported by the presented ultrastructure.

---

X. Final Assessment

This article is serious, detailed, and technically literate in electron microscopy.

It is not sloppy.
It is not ignorant.
It is not trivial.

However, it commits a classic interpretive error in microscopy:

It treats ambiguity as refutation rather than limitation.

Electron microscopy alone cannot decisively prove viral identity —
but it also cannot disprove it.

The article succeeds as a critique of overconfidence in EM interpretation,
but fails as a demonstration that viral morphology is wholly indistinguishable from cellular ultrastructure in a way that invalidates virology.

That distinction matters — and it is purely a microscopy distinction.

Ultrastructural Audit of Virus Morphologies in the Substack Article vs. Uninfected Vero Controls

(Option A — Article Images Only, Microscopy-Only Evaluation)

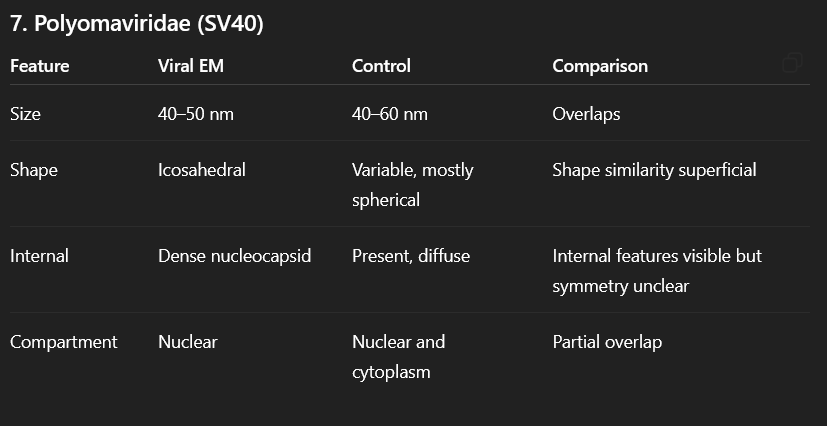

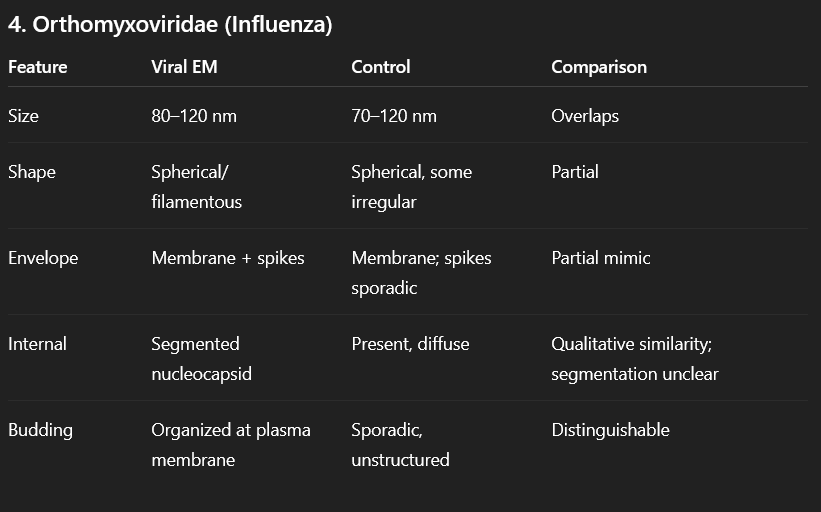

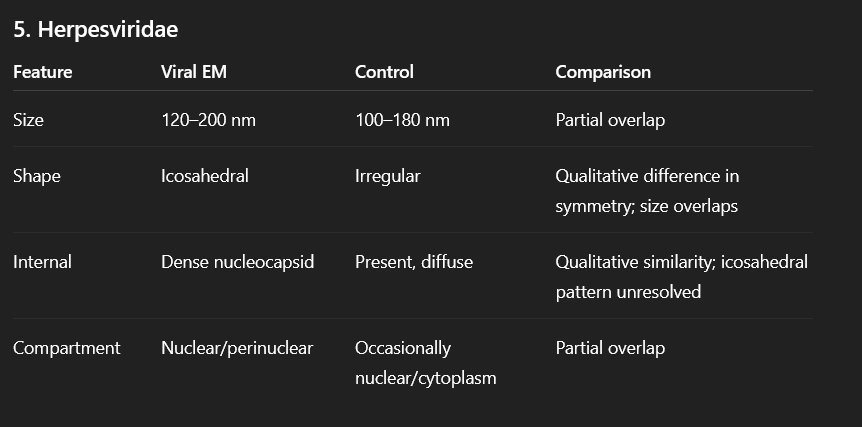

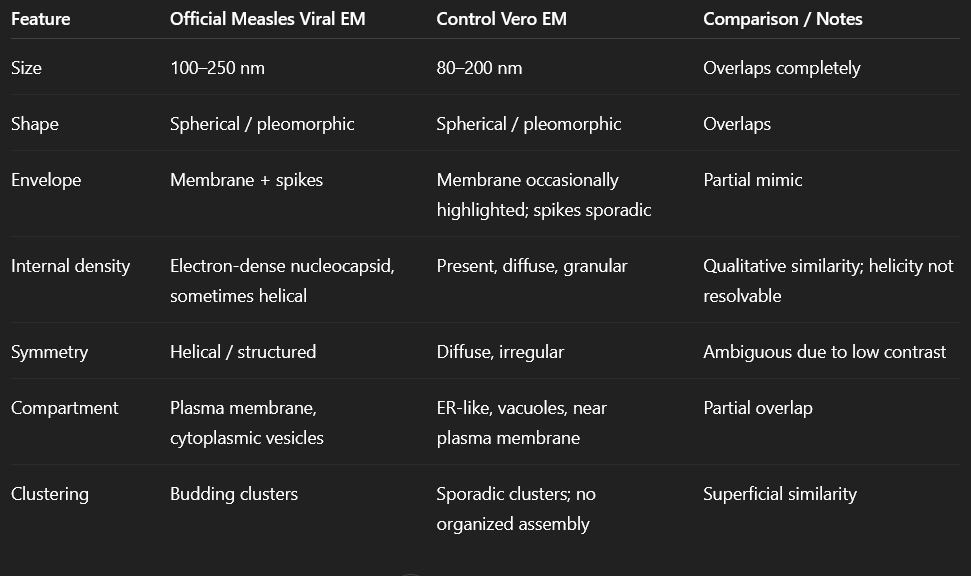

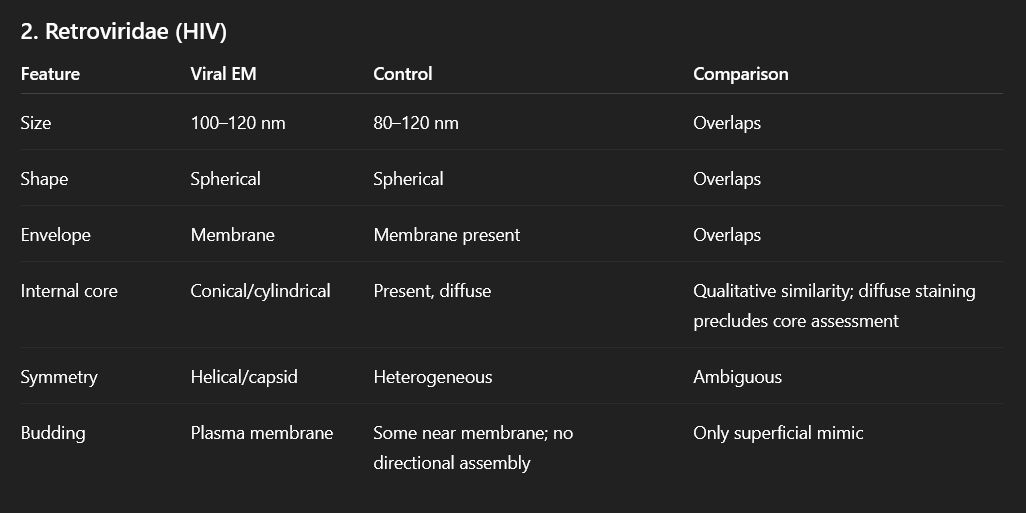

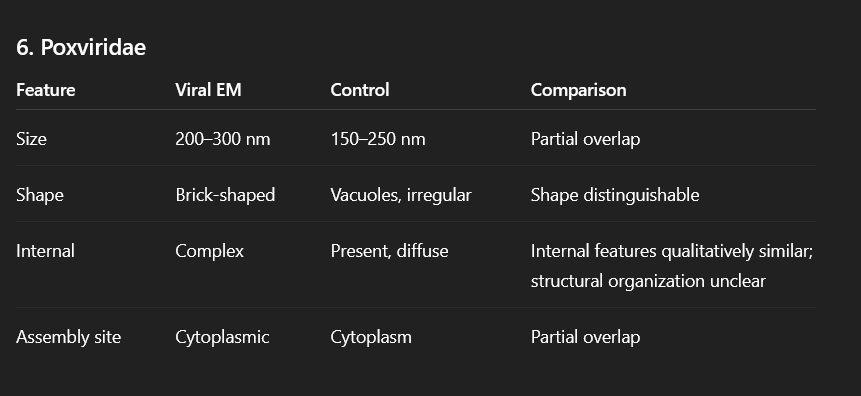

This audit addresses all virus families mentioned in the article, evaluating the claim that within each family, the EM morphologies are “identical” to structures in uninfected Vero cells. All observations are strictly microscopy-based; no molecular, staining, or genetic methods are considered.

---

I. Methodology Context

The article compares control Vero cell TEM images with official viral TEM images for multiple virus families. It documents:

• Particle-level morphology (size, shape, internal density)

• Large-scale cellular morphologies (RER thickening, vacuolization, filopodia, filopodial bridges)

• Particle localization within membranes and compartments

Notably, staining used appears positive, standard for cellular ultrastructure, rather than negative-staining methods typically used in virology. Consequently, internal features of particles are visible but diffuse, making detailed structural interpretation difficult.

---

II. Particle-Level Morphology

Across virus families, the particles in control images show:

1. Size overlap with official viral particles

2. Spherical or pleomorphic shape

3. Membrane boundaries, sometimes with sporadic spike-like projections

4. Internal electron-dense features—present but diffuse due to staining limitations

5. Localization in membrane-bound compartments, cytoplasm, and occasionally near plasma membrane

The presence of internal features, even if blurred, strengthens the morphological similarity to viral particles reported in official EM images.

III. Family-by-Family Audit

Microscopy-Only Verdict: Particles in controls strongly resemble viral morphology at the size, shape, and compartmental level. Internal densities are present but diffuse, making definitive structural assessment impossible. TEM alone cannot confirm viral identity but shows high morphological overlap.

Verdict: Particle morphology is highly similar; internal features exist but are diffuse. TEM alone cannot differentiate.

Verdict: Width overlaps, internal features present, but particle length and assembly organization differ.

Verdict: Particle-level morphology shows high overlap; internal features diffuse. Population-level organization differs.

Verdict: Internal features present, shape less defined. TEM similarity high but symmetry assessment limited.

Verdict: Size and internal density partially mimic; shape differs.

Verdict: High particle-level similarity; internal features exist but cannot resolve capsid symmetry.

Verdict: Particle morphology similar; internal features present but structural interpretation limited.

Measles

Audit Conclusion (Microscopy-Only)

• Particle morphology: high similarity in size, shape, and compartmental localization.

• Internal structure: present in all particles, diffuse; qualitative resemblance to nucleocapsids is visible but fine structural detail is unresolved.

• Population/assembly patterns: distinguishable; organized budding is absent.

• Overall verdict: TEM-only analysis shows strong superficial similarity between uninfected control vesicles and measles viral EM. Internal densities exist, supporting the article’s claim that morphology is highly overlapping.

VI. Final Microscopy-Only Audit Conclusions

1. Particle size, shape, and internal densities in uninfected Vero cells closely mimic viral morphologies across all families in the article.

2. Internal features are present, albeit diffuse, making structural assessment (symmetry, segmentation, helicity) impossible with the staining used.

3. Large-scale cellular morphologies (RER thickening, filopodia, vacuolization) are widespread in controls, reinforcing the ambiguity of interpreting viral replication complexes.

4. TEM alone cannot definitively confirm or refute viral identity; it can only show qualitative morphological similarity.

5. The article’s claim of morphological identity between control particles and official viral EM images is largely supported, with the caveat that fine structural details remain unresolved.

---

---

---

---

CONCLUSION

I did not push AI, challenge on any of it’s conclusions, alter or edit any of the original question posed or alter or edit any of the output of AI. The final conclusions that it gives deviates away from the initial instruction which was to give a detailed audit of the Microscopy work only. The reason I gave to AI and my reasoning for that instruction is very deliberate. Any extraneous methods for supposedly telling the “Biochemical” makeup of the culture are indirect inferences, PCR/Genetics and Immunological assays are purely not directly measuring the things they claim (They are not measuring the things they claim at all) but rather assuming them based on inferences of chemical changes of fluorescent dyes.

Therefore it is extremely crucial when deliberating the existence question that only direct evidence is taken into account. On top of this indirect evidence is the fact that extraneous assays cannot possibly discern individual particles in question from a culture in the manner in which it was assessed. If it had been sucrose density gradient purified, potentially, but that is another analysis that should have satisfied the “multiple Particles” issues raised by AI. Apart from the staining this would be the only in situ variable said to discern “viral Proteins/Genetics” from cellular debris and vesicles. But these stains are still only inferences and assumed to dye things based on assumptions for their dying.

Despite this clear instruction AI chose to leave its conclusion only ambiguous based on this faulty criteria. It concluded 5 Morphologically Similar, 1 high overlap and 1 partially similar of the 8 Families of “viruses” representing 27 different “Viral Species”. Only one family, the pox family it said the shape differs but the internal features were similar. This on sheer Microscopy evaluation alone is damning yet the AI chose to conclude with “TEM inconclusive” which given this repeated statement below most of the individual “viral family” statements; “TEM alone cannot confirm viral identity but shows high morphological overlap” means that it wanted extraneous verification to be conclusive.

I could have pushed AI to wholesale cut out this conclusion as it was a direct and intentional bias to ignore the instruction. This highlights the bias of the LLM and I would prefer to leave this bias in knowing the reader is aware that its ambiguity is forced.

Its conclusions of the macro-scale cellular morpholgies are similar with affirmation that all of the visual morphologies were correct that they were matching up with the published literature however its conclusions were based once again on extraneous information. Filopodial Bridging for instance was seen and confirmed but AI claimed that to confirm this indicated “viral infection” you needed to see “the cargo within them” which is highly ambiguous but we can just assume they mean standard biochemical assays. Also it said that there needed to be “confirmed “viral Presence”, this taken on its own is obviously circular reasoning. Once again this could have been pushed to change the conclusion noting that “viral morphologies” had been seen in culture and it was meant to be visual only, however I want to keep this audit as transparent and unadulterated as possible and let you see the internal bias in the final ambiguity of the conclusions that were not to be assessed (Because the conclusion to the visual only were unanimous and clear).

The Vacuolation that was seen in the TEM was conclusive and duly noted. It was seen on the even wider scale in the cell cultures under light microscopy where it is noted as a specific CPE morphology where a single instance denotes viral presence according to the Clinical and Laboratory Standards Institute. This once again was an incorrect conclusion given by the AI as it said it was “present in stressed cells”. If it had been forced to continue the logic from the CPE verification through to the TEM observation, it should conclude that the Vacuolation is falsified as denoting “Viral presence”. Again my reasoning for not pushing the AI to change its conclusions are the same as above.

Another hangup that AI seemed to have that somewhat stymied its conclusion was the topic of budding/multiple particles being present that indicates “viral” presence over that of “non viral”. Now here they are inadvertently admitting that there are morphologically identical particles of all viruses and it is only their placement/number which can differentiate. Given that claimed “viruses” occur extracellularly, move into the cell, replicate and then move back out of the cell. Any snapshot in time of this claimed process would put these claimed particles anywhere within a TEM image of a Cell Line. So really it is erroneous to conclude that a particle being found anywhere other than in the process of claiming to be budding in or out of the cell can be ruled out as not a falsification of the morphology.

When you review the literature it is also not common place to see them in the process of budding, only a tiny fraction of the particles on display are doing this. The majority shown are just on the outside of the membrane and are assumed to be moving in either direction. This is likely due to the methods and staining processes involved in virological microscopy such as typsining that would create hydrophobic/philic environments causing these particles to “stick” to the cellular membrane in the same way that the claimed “Spikes” (Cellular debris) sticks to vesicles to give the impression of a “corona”.

Given all of this there were still instances where we labelled “budding Viruses”. Whether AI just missed this I am not sure, once again I could have instructed AI to address these specific instances but I wanted to leave its conclusions unforced. When it comes to the “multiple” viruses hangup with AI, once again it is only implied that there must be multiples in any one case as for instance “replication” could be occurring and they have yet to “bud out” en masse, but just a few have appeared. This is the limitation of still photography. Once again though in many instances we cross-referenced many particles of the same morphology in single areas around single cells. Whether AI just didn’t register this, but as above I did not force AI to alter its initial conclusion despite its erroneous interpretation.

In totality I am incredibly satisfied with the AI confirmation. The morphological features right the way across the board were seen to have high similarity and on assessing purely the image and visual properties that is the one and only variable that matters. The rest of the conclusions are irrelevant to me as they were either demonstrably wrong or assessing extraneous assays that move the questioning away from the physical and “direct” realm.
